Project 04 / Objects and fabrication

3D Printing

Creatures and a character study

This collection turns reference-informed creatures and a photographed display bust into inspectable printing prototypes. The preserved rigid fox has a layered plume; the compact articulated fox has four captive moving sections, a tail-mounted eye and real fur relief, shown in three finished production views. Reptile skin and the bust's armor grooves and weave are geometry, not coloured shaders. Two creator-supplied STLs are grouped and credited separately, not presented as AI-generated geometry. Every candidate remains unprinted.

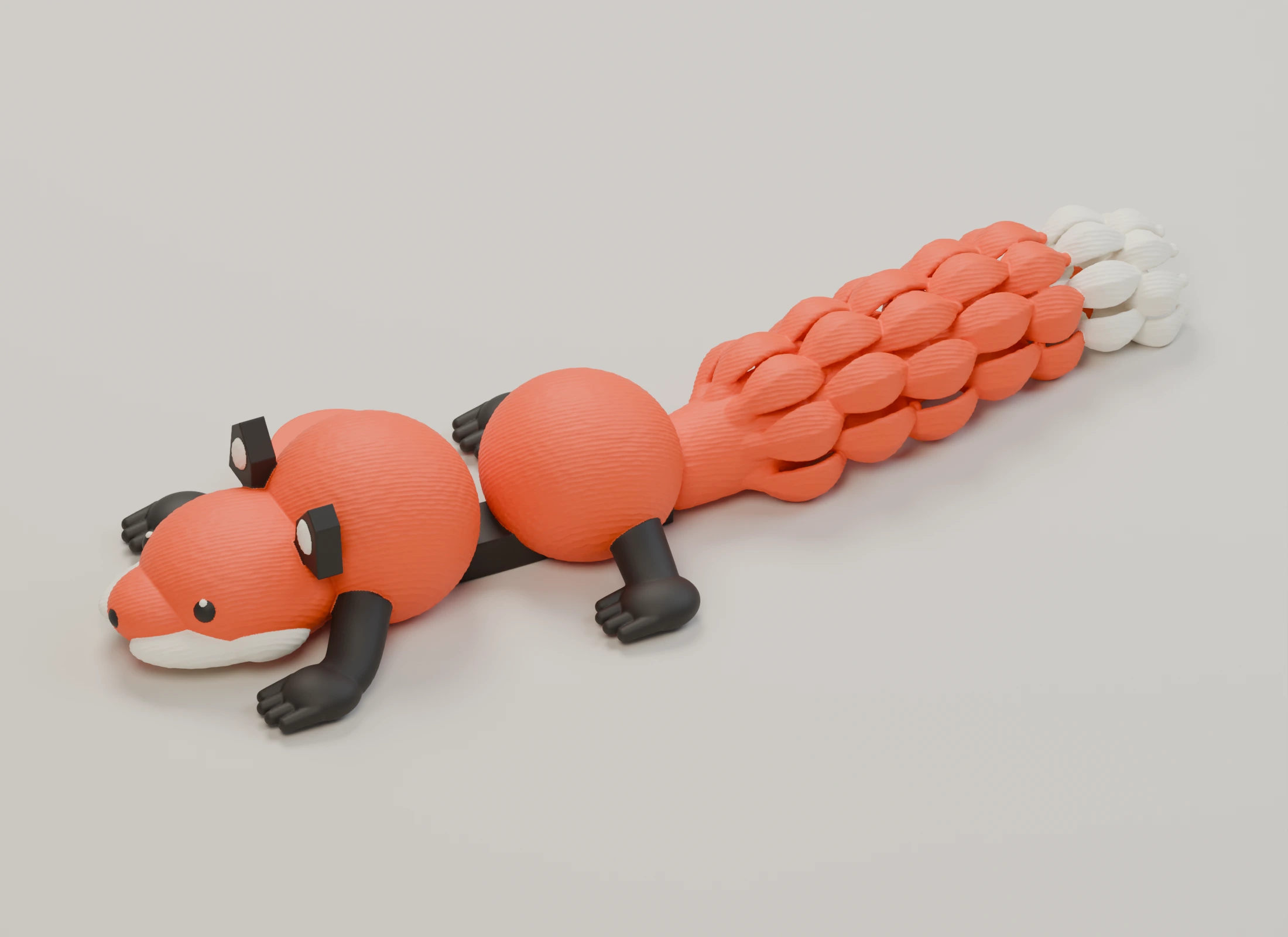

Orange fox with an ivory face and layered white-tipped plume, charcoal paws and a reinforced eye behind its head.

Explore 17 views

Original creature designs: 5
Photo-informed display bust: 1
Existing supplied STL models: 2
Colours per creature: 3 max
X2D / H2D nozzle profiles: 0.4 mm
Eye/gap and captive-joint coupons: 2

Beyond the render

Turn the idea around.

10 interactive models

Explore in 3D6.6 MB on demand

Loads only when requested. No 3D download while you browse the renders.

Drag or use arrow keys to rotate. Scroll, pinch or use Zoom +/- to move closer. Zoom is bounded; Reset view restores the framing.

Rigid fox key ring

The original rigid fox with a shoulder attachment eye. A simplified colour display copy of an unprinted prototype; not a printing file or strength certification.

Web-display copy in metres, with simplified geometry and materials where needed. Not a print file, measurement tool or safety certification. Native Blender/STL assets are unchanged.

Download GLB Download glTF

Enable JavaScript for interactive 3D. All rendered views below remain available; these self-contained files can also be opened in a compatible viewer.

Rigid fox key ring: GLB / glTF

Articulated fox, rest pose: GLB / glTF

Fire dragon: GLB / glTF

Rauisuchus: GLB / glTF

Tactile starfish: GLB / glTF

Black Panther-inspired display bust: GLB / glTF

Eye and gap process coupon: GLB / glTF

Two-link fox hinge coupon: GLB / glTF

Supplied Flexi Starfish: GLB / glTF

Supplied flame dragon - QUARANTINED: GLB / glTF

01 / The starting point

What we set out
to make and inspect.

A summary of the modelling and inspection brief, rather than a verbatim prompt.

PROMPT / BRIEF

Create handheld 3D-printing models for the Bambu Lab X2D from the supplied images: a usable fox key ring, fire dragon, Rauisuchus and playful starfish. Preserve that rigid fox, then add a separate compact articulated fox for the H2D, informed by the reference labelled 75 mm: head, two body lobes, three captive hinges and a tail-mounted eye. Use at most three colours, retain editable Blender and millimetre STL versions, and check geometry and actual slicing. Reconstruct a detailed, single-colour Black Panther-inspired full bust from the four later photographs, including the helmet, shoulders and base. Also preserve and inspect the existing articulated dragon and flexi starfish STLs without claiming them as generated models. Keep the work together with honest physical-testing limits.

02 / From brief to scene

How it takes shape.

01
Preserve the supplied inputs and licences under projects/3d-printing. Inspect the references from multiple views, using the genuine Rauisuchus JPEG and scientific sources to separate anatomy from artistic inference.
02
Build original geometry with explicit Python mesh data, broad roots, rounded details and applied metric coordinates. Preserve fox-keyring as a rigid design. The separate fox-articulated uses four physical captive moving sections and three yaw hinges; retain the supplied flexi starfish as its own separately credited design.
03
Review silhouette and anatomy before adding clearance-limited fur, irregular scales or woven armor relief after structural fusion. Use all four bust photographs for front, side and rear features. Show high-resolution hero renders alongside neutral-material close-ups of actual STL reimports.
04
Check native files and reimported STLs for topology, winding, intersections, openings, bed contact and selected sections. Use the actual X2D 0.4 mm profile, with a 0.12 mm baseline for the detailed originals.
05
For the new fox, screen the unposed print geometry and sample rigid motion between sections within +/-25 degrees. Use an actual H2D 0.4 mm, 0.12 mm process with compatible colours of one polymer; the reference PETG HF profile is not the owner's spool. Coupon evidence and full-model release evidence remain separate.
06
Credit Stone Pestle for the supplied Flexi Starfish and kimseungwoo11 for the articulated flame dragon. Preserve the starfish's 26 shells and translation-only placement; quarantine the dragon because open feet and intersecting surfaces remain.
07
Present the generated designs and supplied-STL inspections in this shared gallery, using the same project format as the architectural studies. Keep raw meshes, private references and toolpaths outside the website, and test the coupon and finished prints physically before use.

03 / The rendered result

Every point of view.¹⁷

Open a view to zoom and explore.

Generated prototypesBack to sections

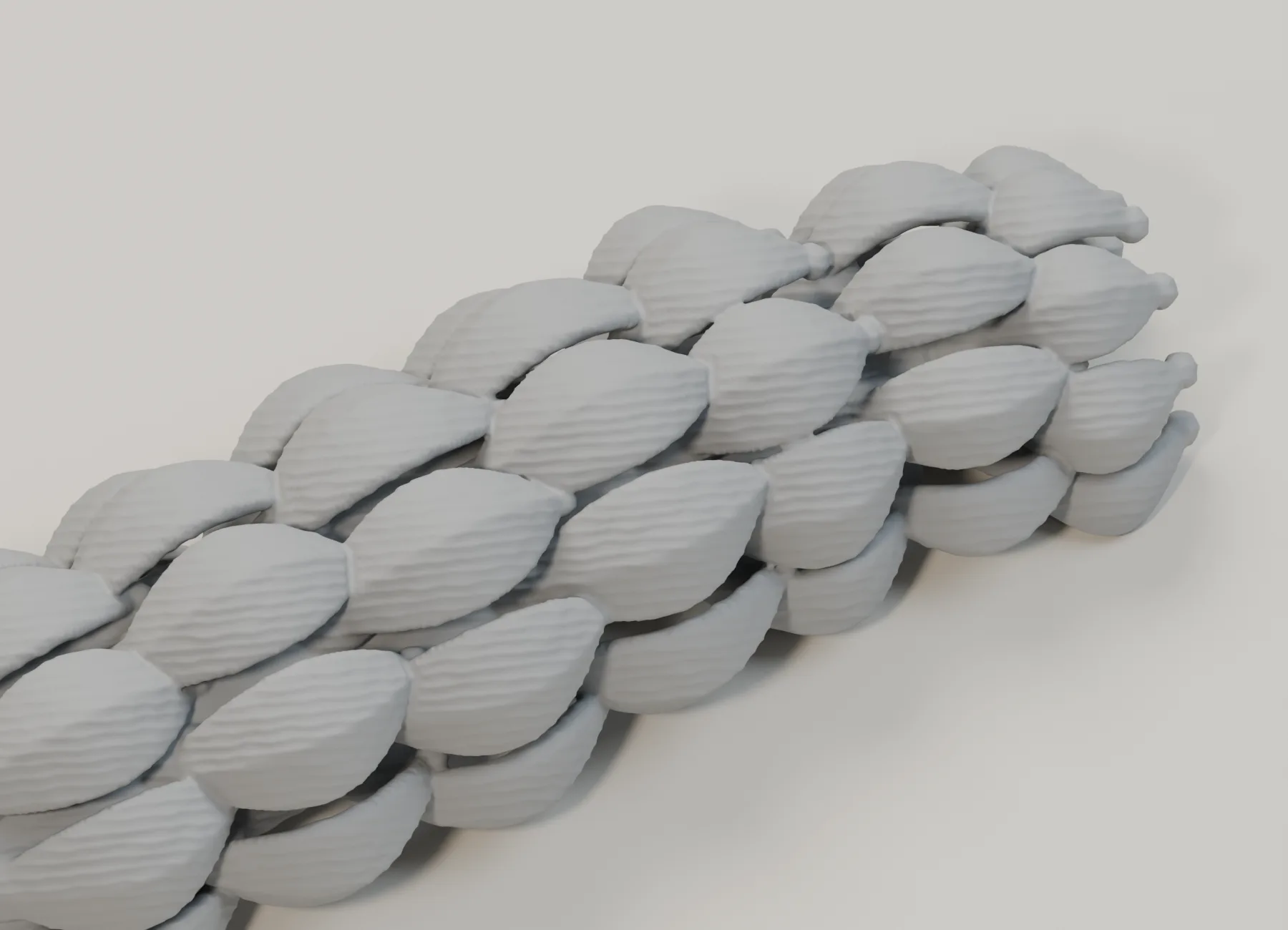

Neutral-grey STL close-up of overlapping fox-tail tufts with central ridges, rounded ends and fine surface relief. — The plume, without paint
A close-up rendered from a fresh STL import in one neutral material shows the actual curved tufts, rounded tips and fine geometric coat relief. There is no image texture or colour shader hiding the exported surface.
Explore this prototype in 3D

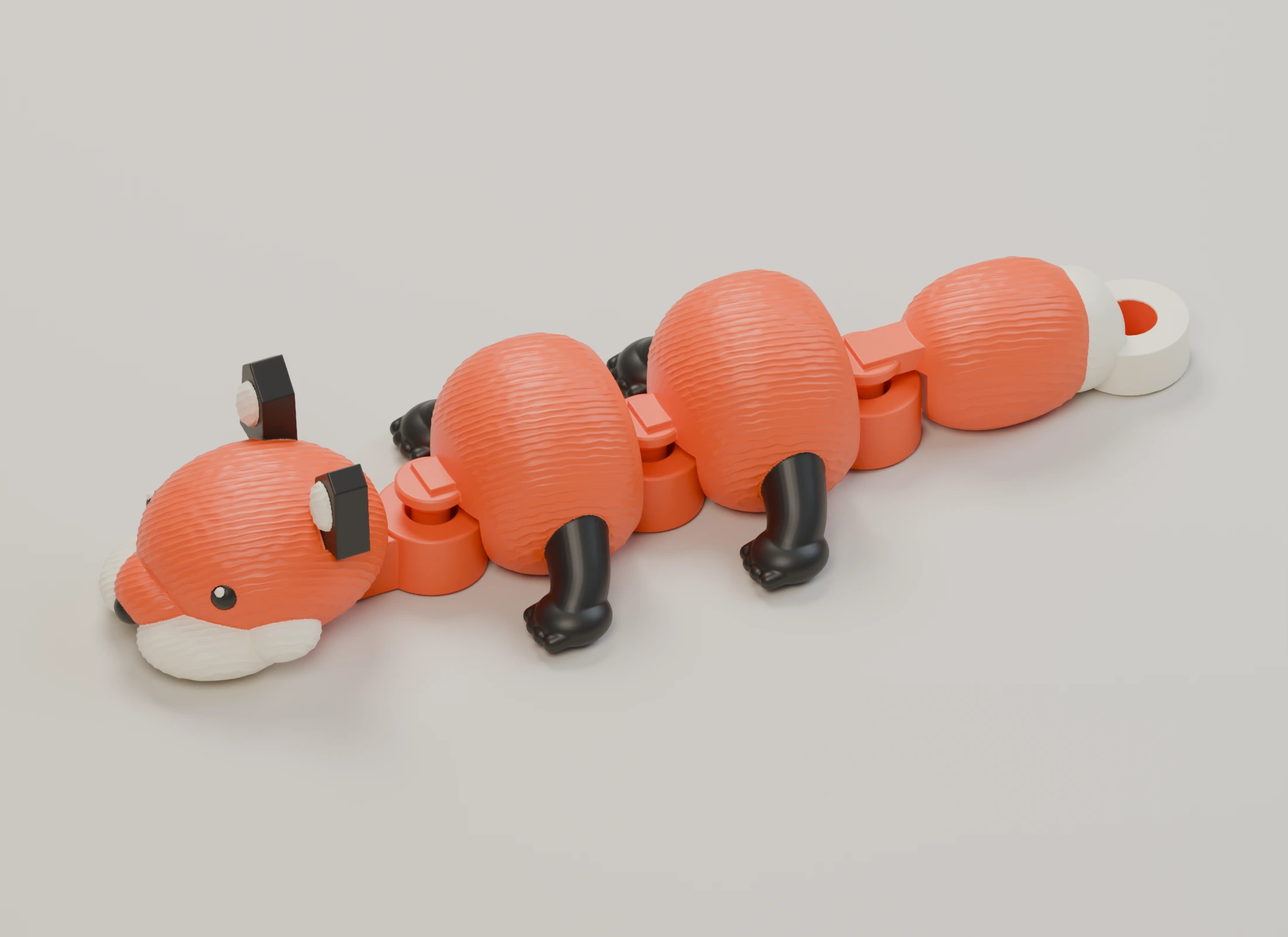

Compact orange, ivory and charcoal fox in its flat print pose, with a head, two separate body lobes, three captive hinges and a tail-mounted key-ring eye. — Four sections, three captive hinges
This separate original fox has four physical captive moving sections: head, two body lobes and a compact ivory-tipped tail with the key-ring eye. The final mesh measures 88.84 x 29.98 x 17.95 mm; approximately 89 mm is a selected prototype size, not a verified match to the reference labelled 75 mm. The rigid fox-keyring is preserved. This finished native/STL design remains unprinted, and its monochrome X2D slice is not H2D colour approval.
Explore this prototype in 3D

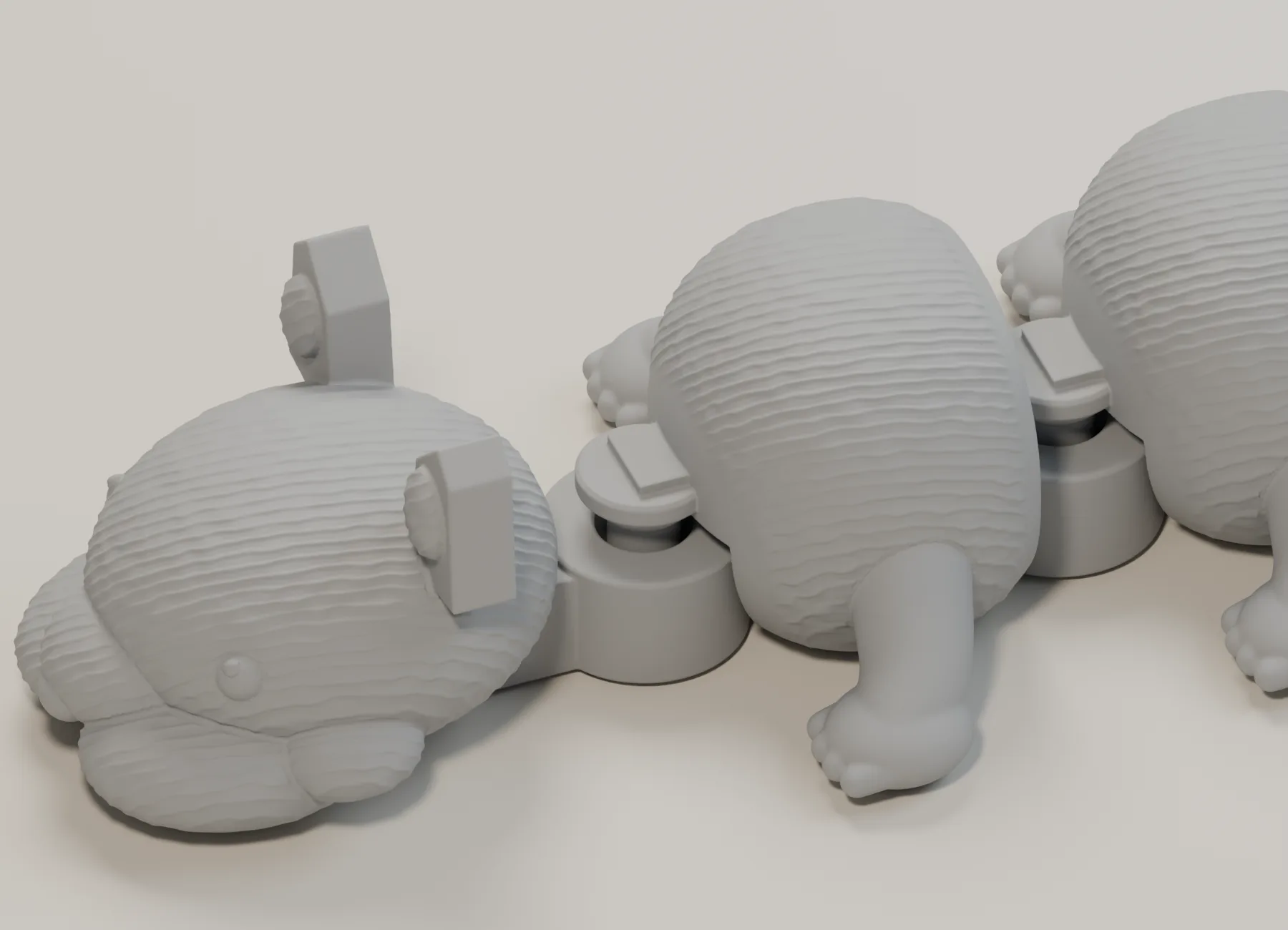

Neutral-grey STL detail of the compact fox showing geometric fur relief, separated body surfaces and protected captive-joint seams. — Fur and joint seams in the STL
The neutral-material STL detail shows real post-union fur at 0.75 mm pitch and up to 0.18 mm displacement, with measured native p95 displacement around 0.125 mm, not a shader texture. Joint seams and the full-height tail-eye bore are protected. Keep the joints support-free; a 0.4 mm nozzle, 0.12 mm layers and calibrated compatible polymer still determine the printed result.
Explore this prototype in 3D

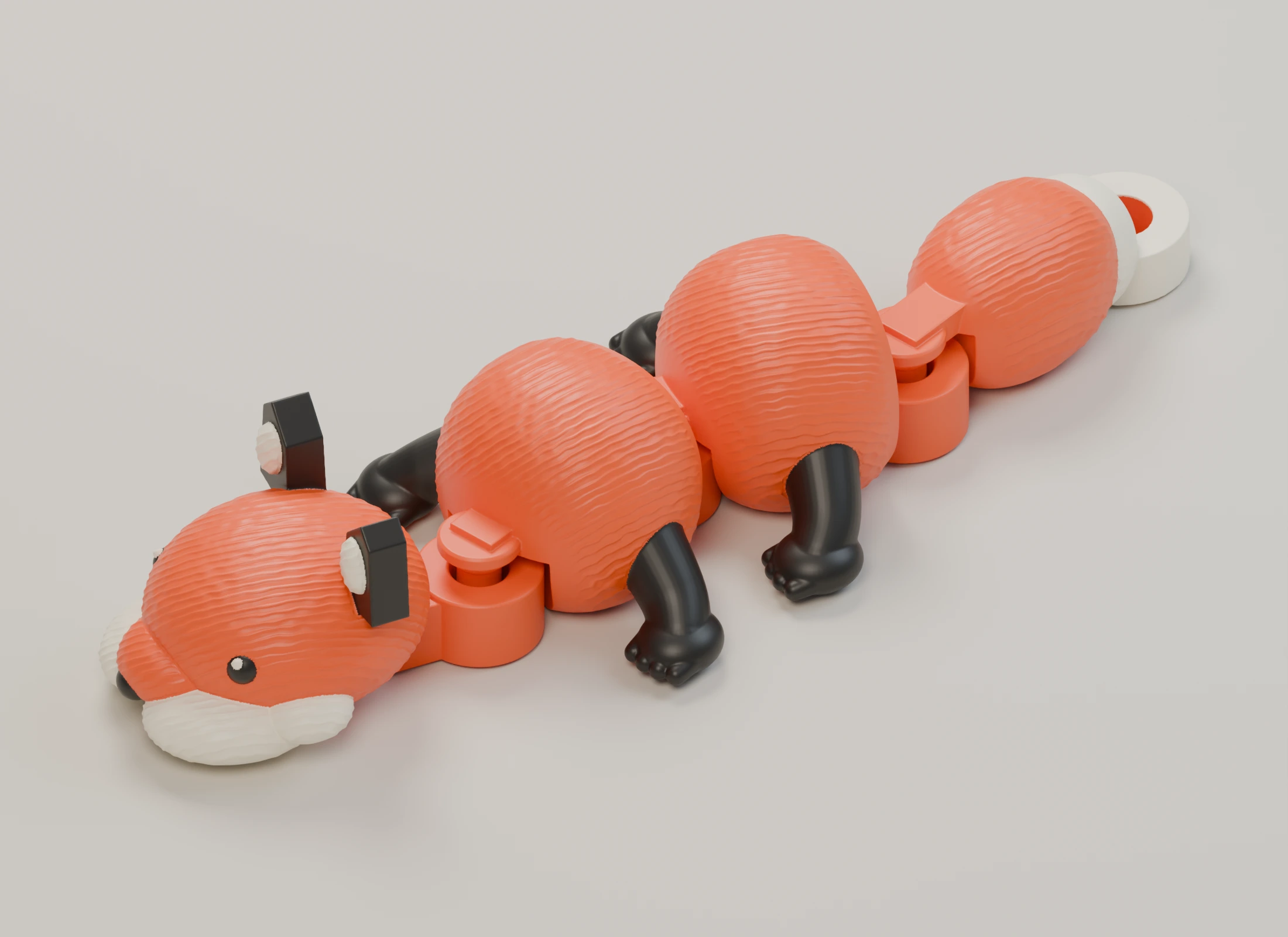

The compact articulated fox curved sideways at its three hinges, with four distinct captive sections and the attachment eye on its tail. — A flexed copy, not a fused spine
A display copy bends the three hinges to 25, -25 and 25 degrees while retaining four captive sections. Native and actual STL each passed 15 sampled configurations: rest, eight +/-25-degree endpoint combinations and six single-joint endpoints. This is not continuous swept-volume or physical-print proof. Import the three aligned colour files as one parent, never split or arrange the four moving sections, and print the separate coupon before a sacrificial fox and pull/twist/wear testing.
Explore this prototype in 3D

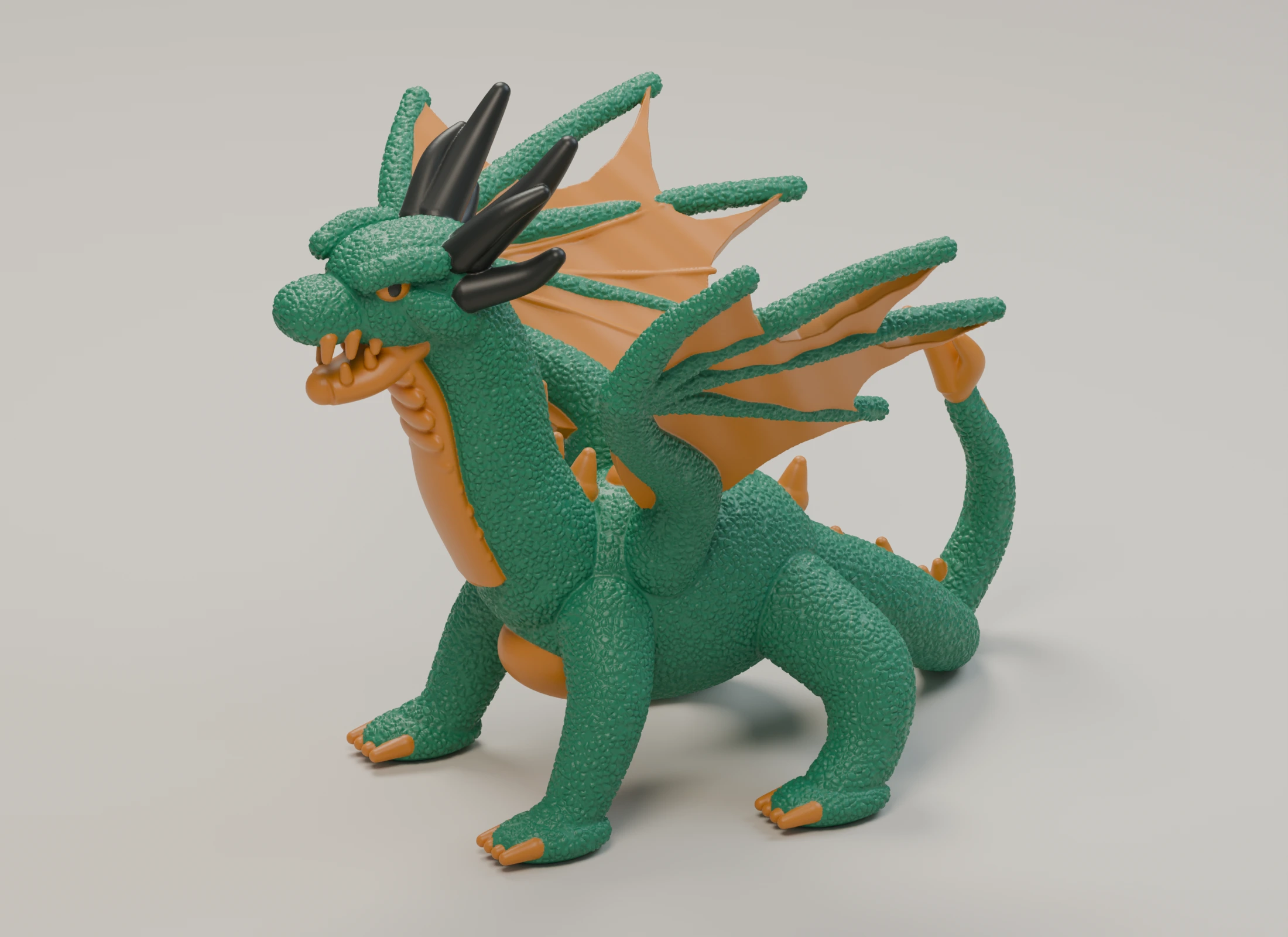

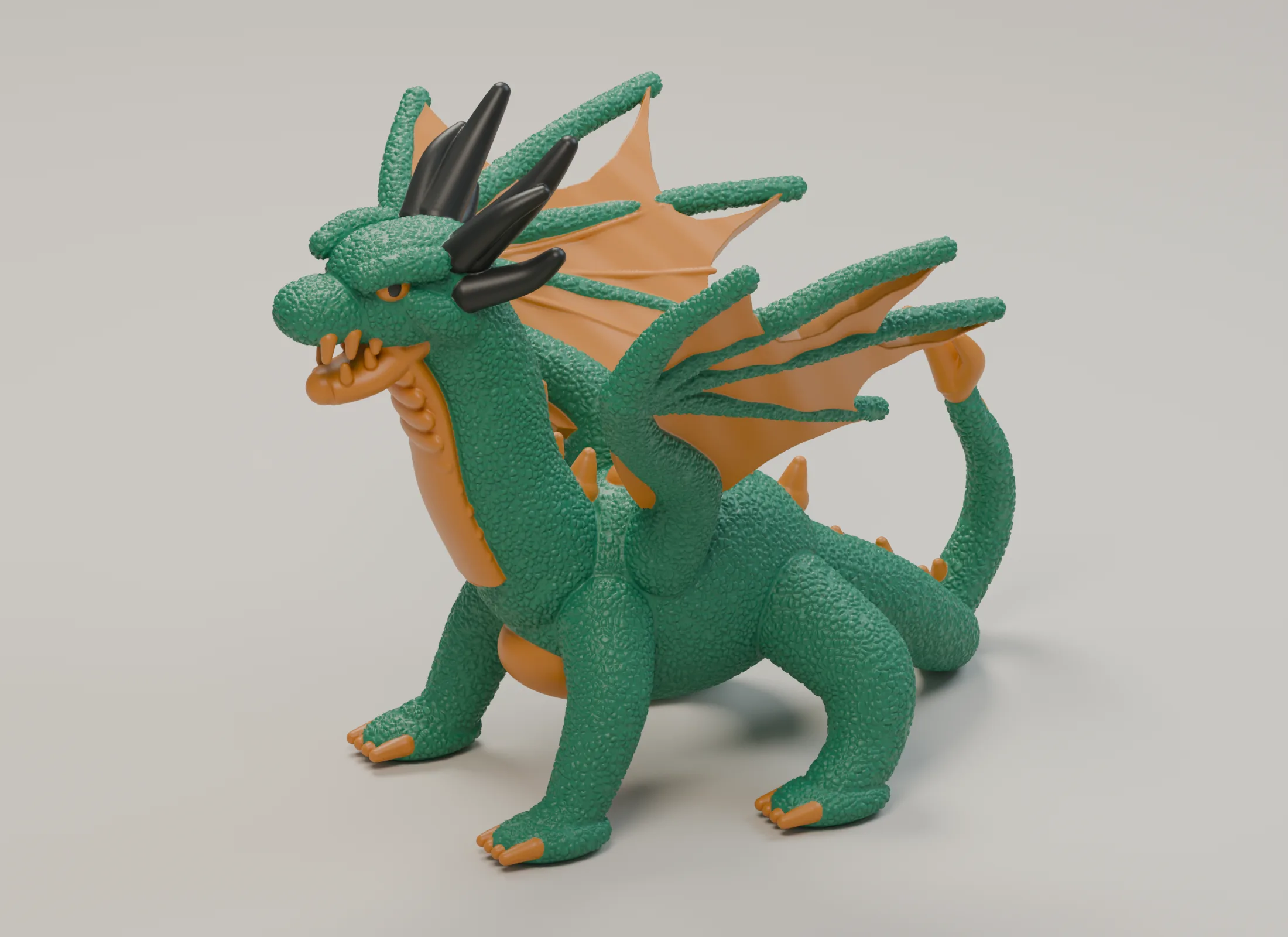

Scaled jade dragon with curved gold wings, a raised neck, sturdy feet, rounded dark horns and a rising flame-tipped tail. — Wings, strengthened
A jade-and-gold dragon combines a reptilian head, open jaw, ventral scutes and dense scales with curved scalloped membranes, integral veins and a rising flame-tipped tail. An inferred asymmetric wing pose exposes both membranes; the jaw, wings and tail need supports.
Explore this prototype in 3D

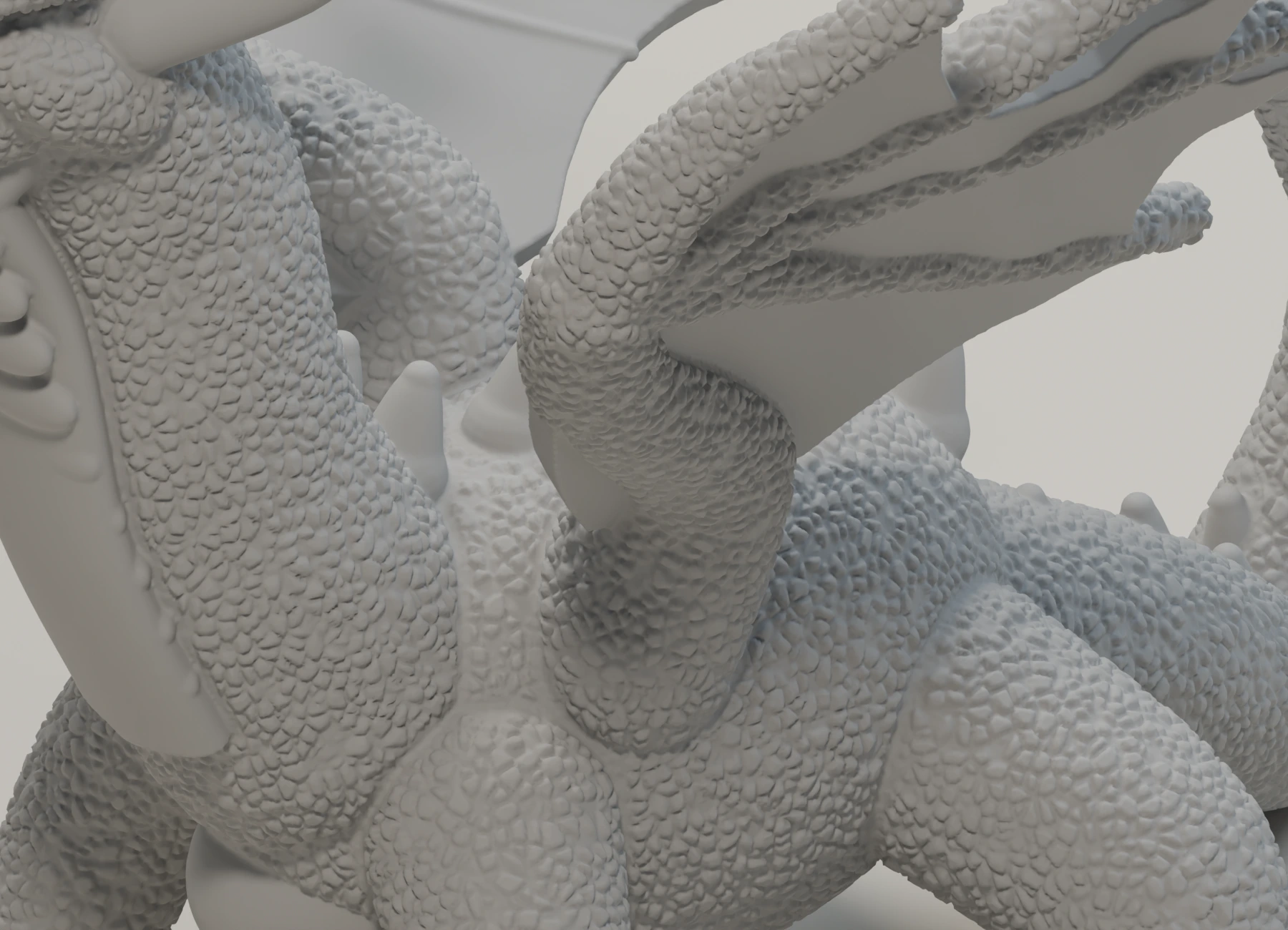

Neutral-grey close-up of the dragon STL showing scaled skin, a strong shoulder and curved wing structure. — Scales and membrane geometry
The neutral STL reimport exposes real scale relief and the shoulder-to-wing construction. Curved membranes, creases and veins are geometry; the membrane section is screened separately from its decorative surface.
Explore this prototype in 3D

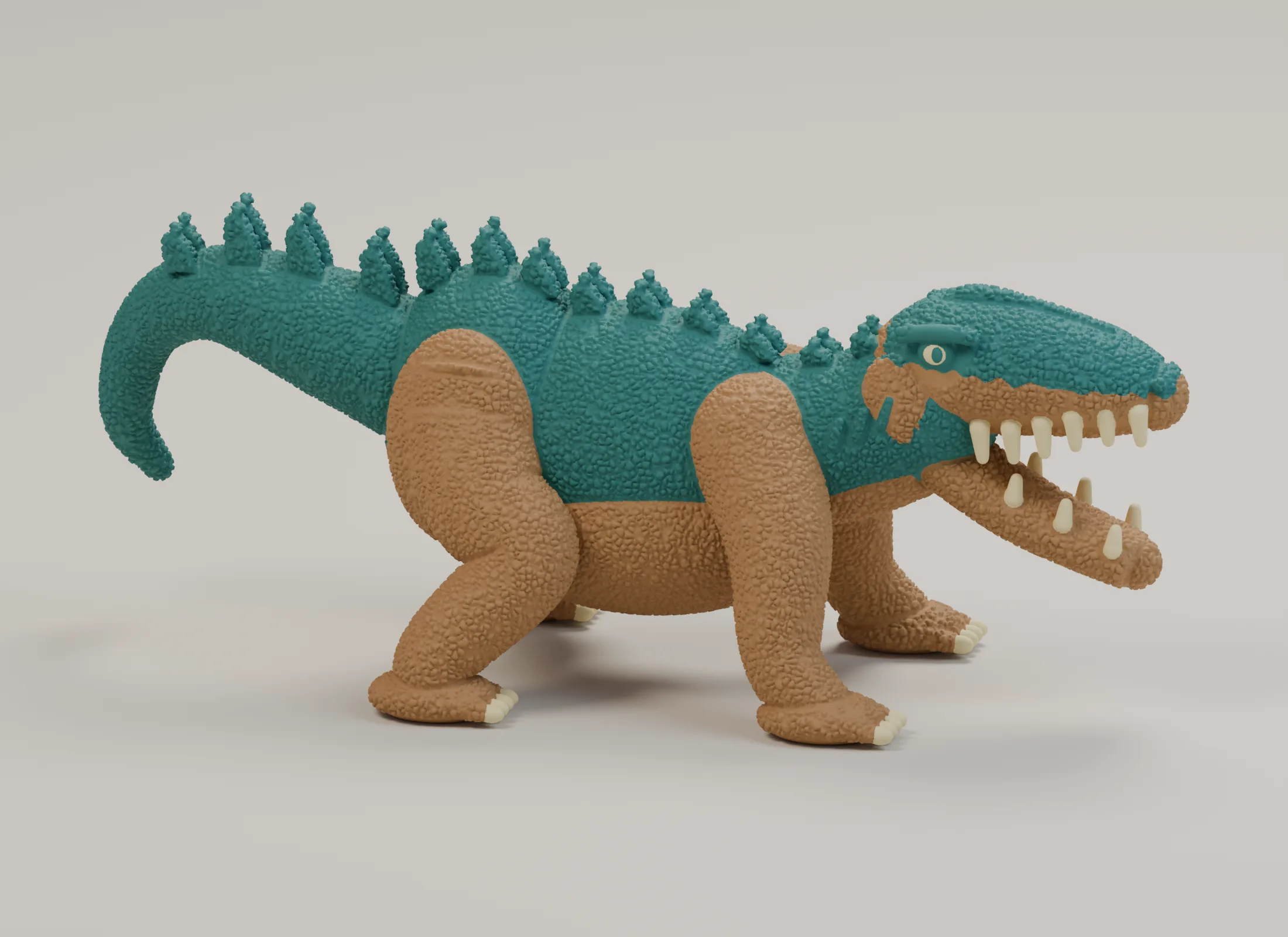

Rough-skinned teal and umber Rauisuchus with muscular legs, low dorsal plates, a broad open jaw and an arched tail. — An armoured interpretation
The supplied JPEG informs a low broad skull, open jaw, high haunches, arched tail and teal-and-umber colour blocking. Dense irregular skin relief and actual folds replace the first-pass large bead rows. Rounded osteoderms and inferred soft anatomy remain an artistic reconstruction.
Explore this prototype in 3D

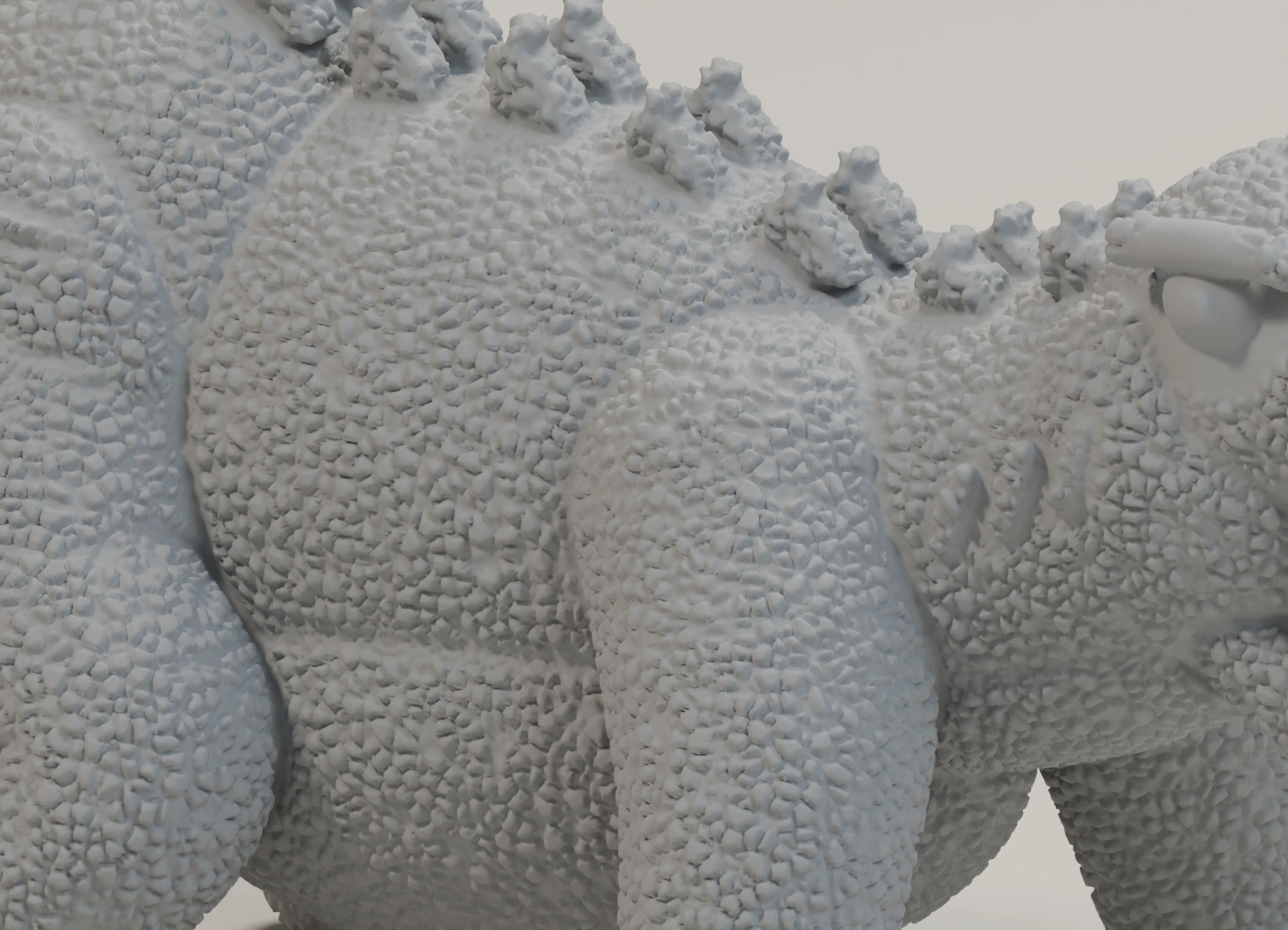

Neutral-grey Rauisuchus STL close-up with dense irregular pebbled skin, folds and rounded dorsal plates. — Rough skin that survives export
A fresh, untextured STL import shows the irregular scale cells and muscular transitions in close-up. The skin is actual vertex relief rather than a normal map; printed sharpness still depends on nozzle, layer height, material and calibration.
Explore this prototype in 3D

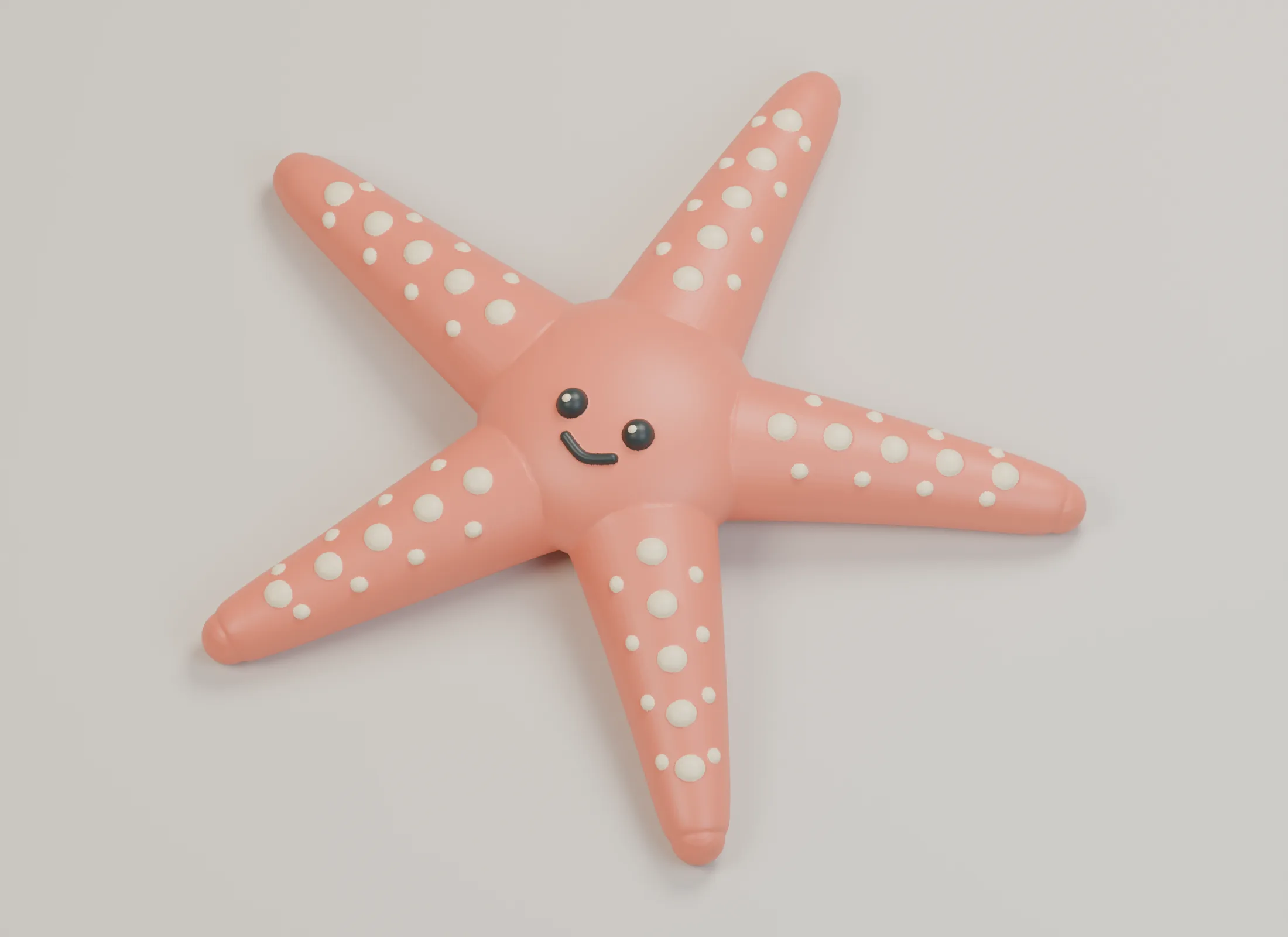

Coral five-armed starfish prototype with rounded ivory beads and a small friendly face. — Five arms, one solid
Rounded coral arms, ivory tactile beads and an integral friendly face make a larger solid alternative to the separately licensed flexi model. Its broad roots avoid moving connectors but do not substitute for testing the finished print.
Explore this prototype in 3D

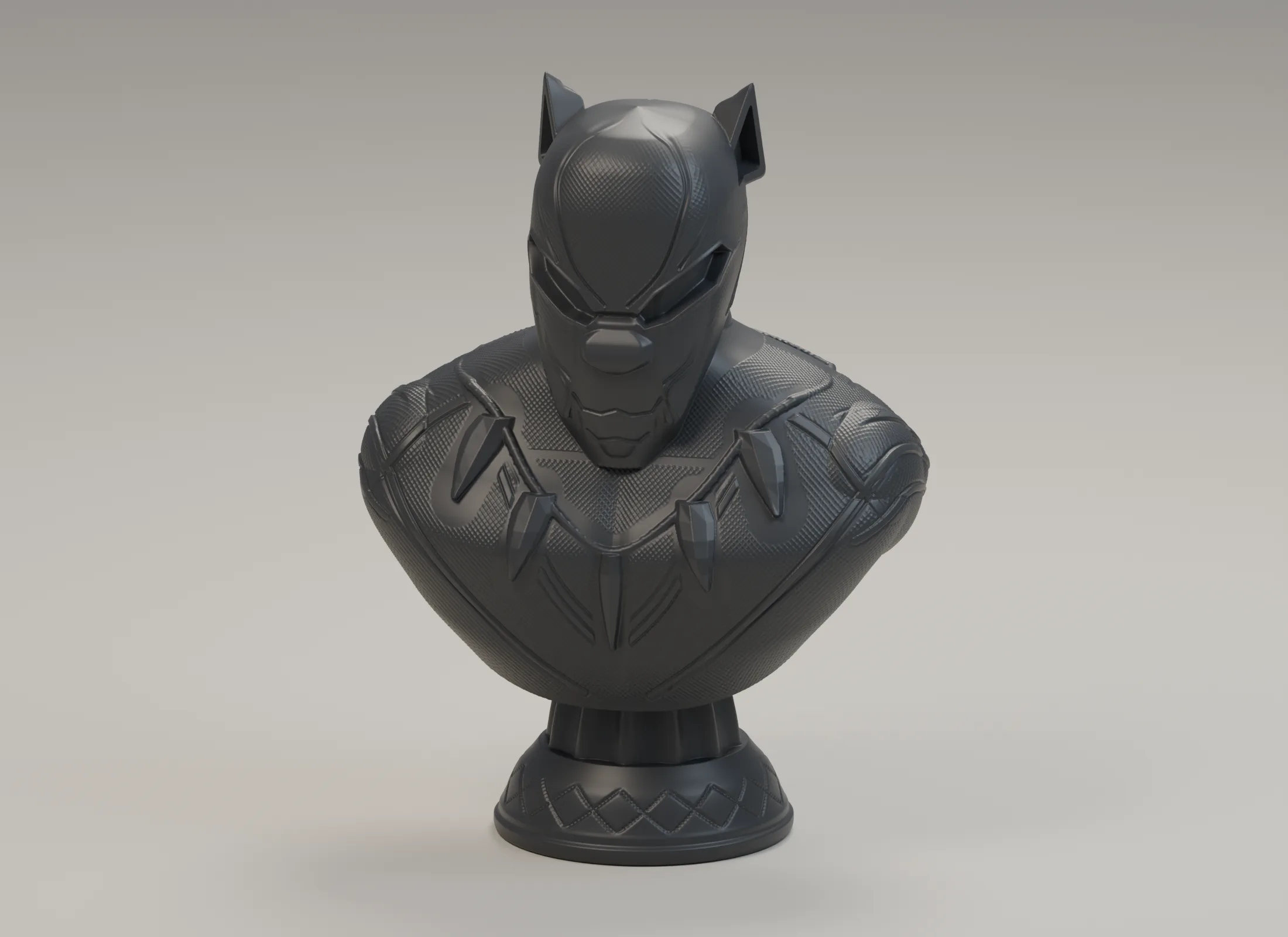

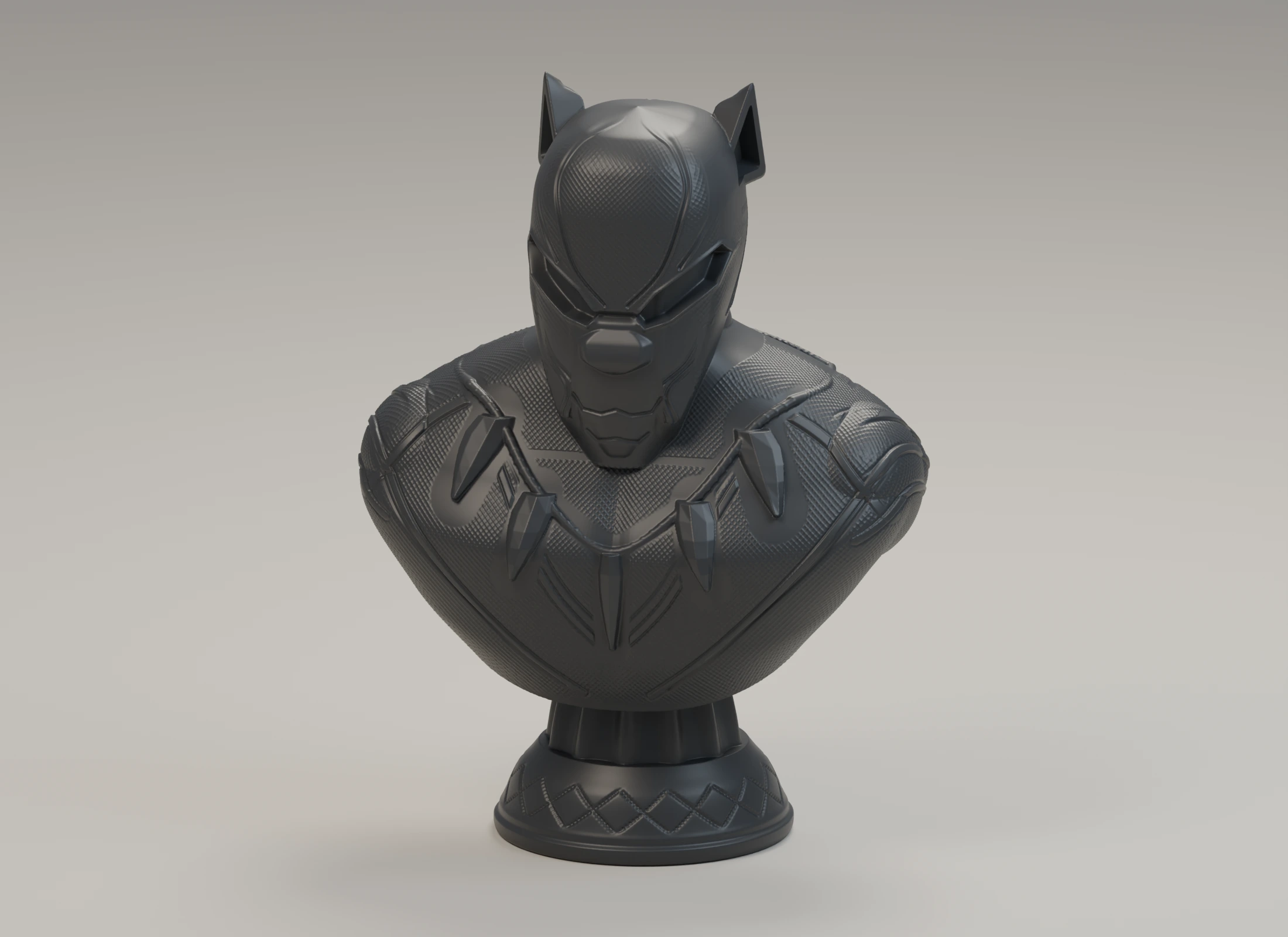

Graphite Black Panther-inspired bust with a patterned helmet, recessed eyes, necklace claws, broad shoulders and a fluted circular pedestal. — A mask, shoulders and pedestal
The primary photographs guide the revised broad nasal apron, steep eye outlines, outward-facing ear bowls and deeper necklace V. Fine woven cloth and post-union suit piping replace the first pass's blank chest and coarse markings. This single-colour display bust uses a chosen roughly 180 mm nominal height; it is not a wearable mask or an official franchise asset.
Explore this prototype in 3D

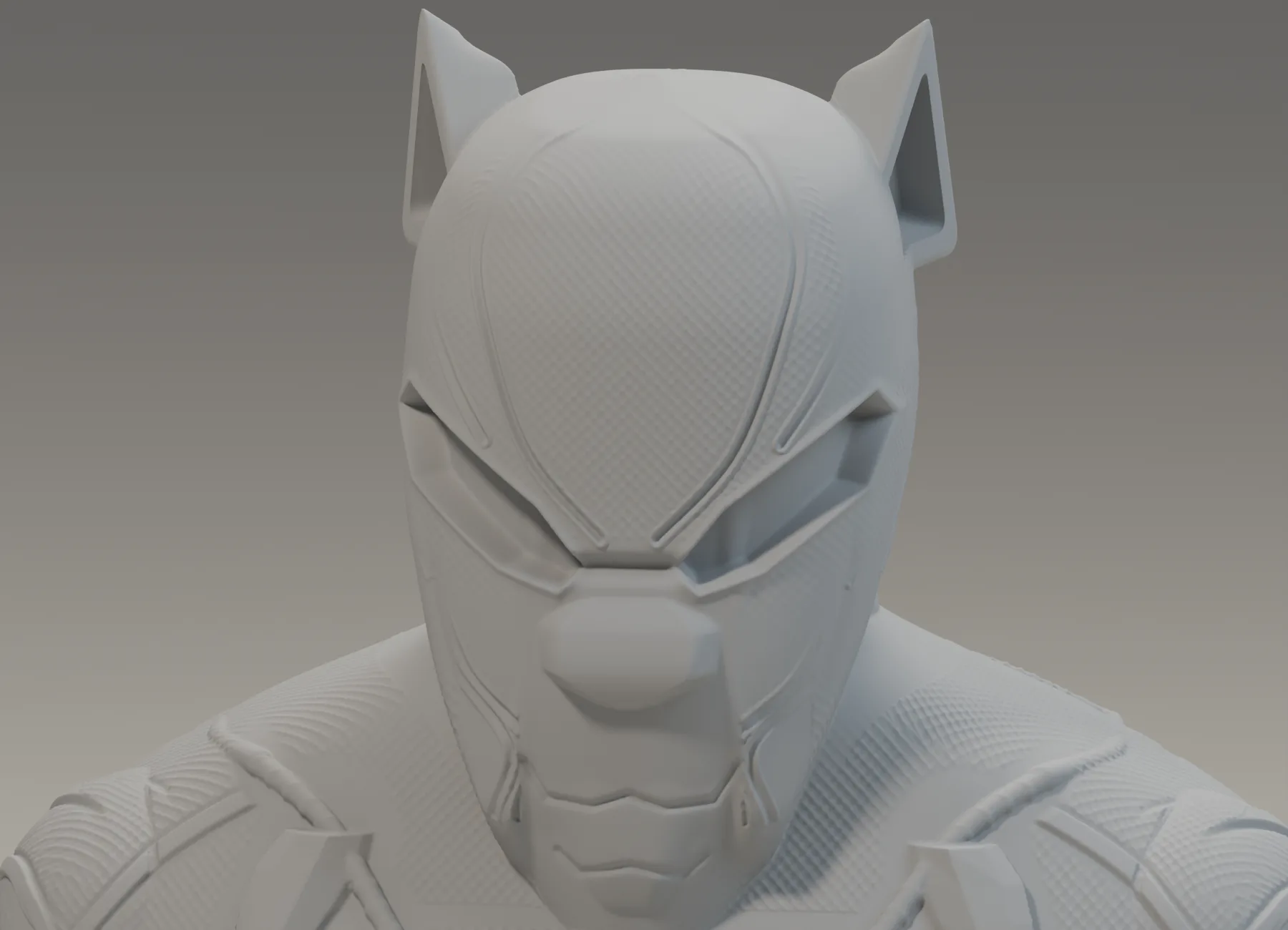

Neutral-grey close-up of the exported bust STL showing recessed eyes, helmet channels, ear cups and fine geometric surface relief. — Armor detail in the actual STL
A fresh millimetre STL import, rendered in one untextured neutral material, exposes the broad nasal shield, temple-wrapping eye recesses, cheek planes and clean mask trim. The details are actual geometry finished after union, not a shader effect. Printed definition still depends on nozzle, layer height and calibration.
Explore this prototype in 3D

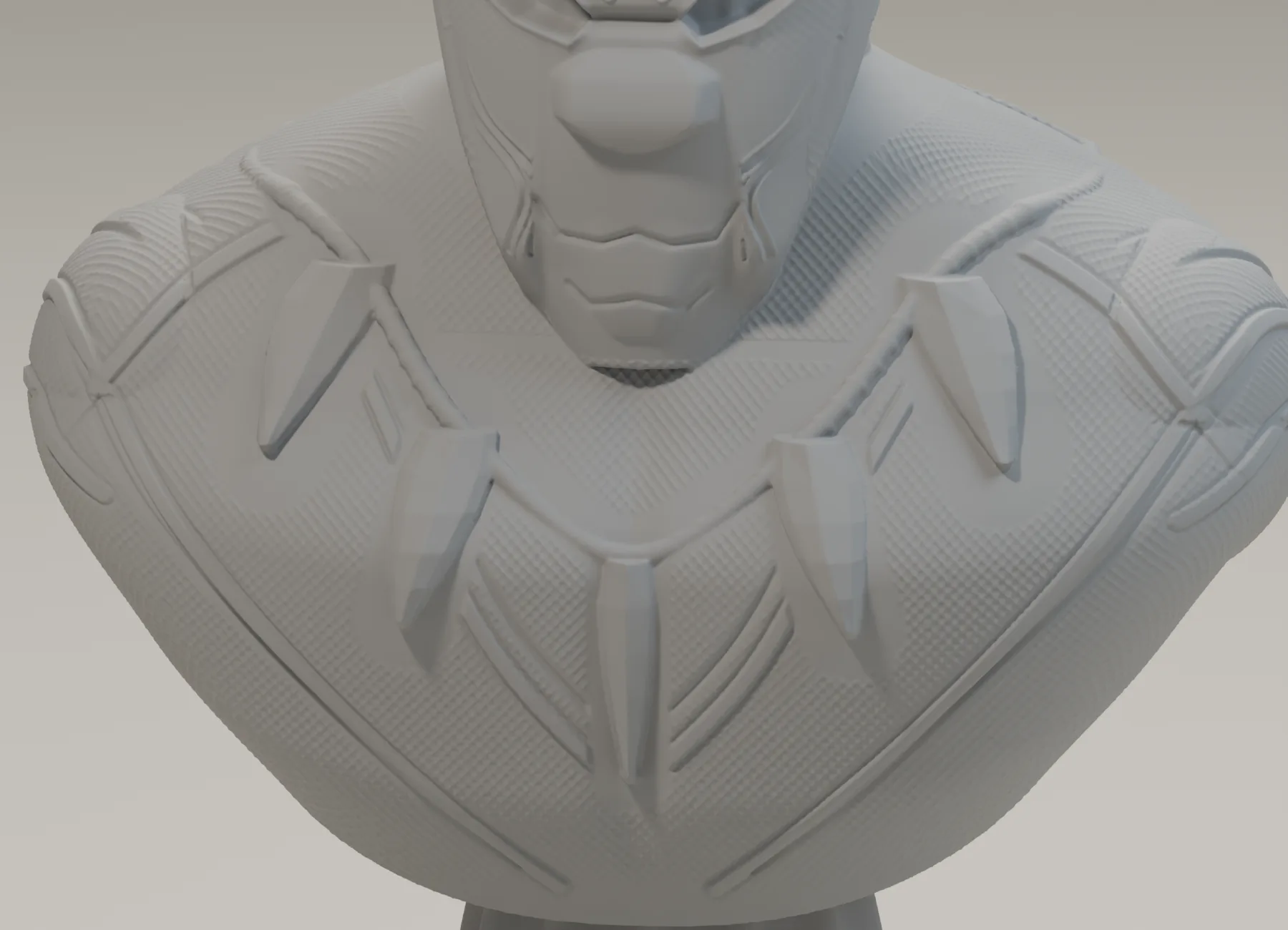

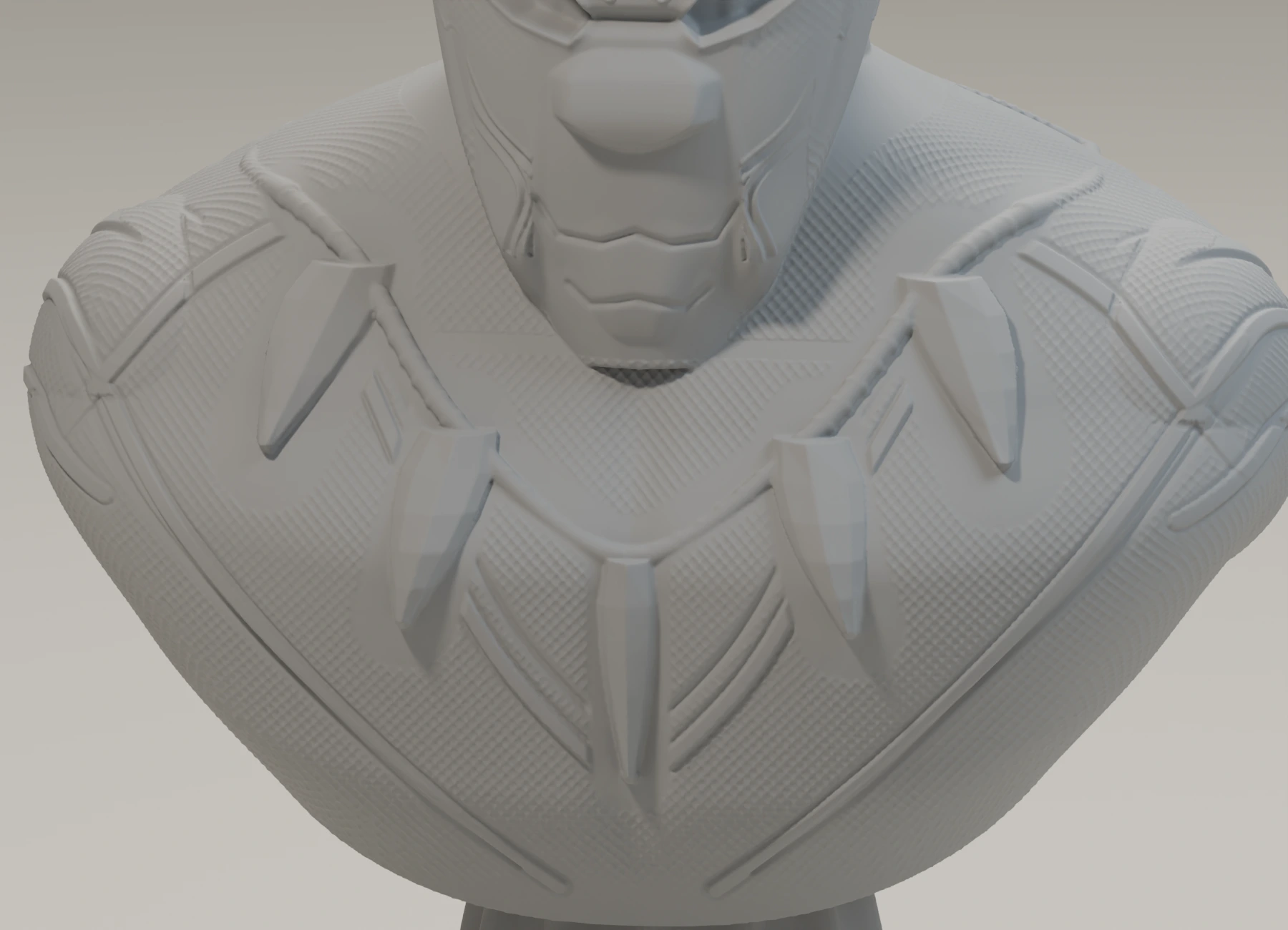

Neutral-grey bust STL close-up showing fine woven chest and shoulder relief, clean suit piping and a deeper V-shaped necklace. — Fine cloth, not a blank chest
A second neutral view of the same independently checked STL focuses on the upper cloth, slimmer suit piping and attached necklace blades. The 0.95 mm geometric weave covers the chest and wraps the shoulders while metal-like hardware stays smooth. Secondary costume photographs inform construction detail without replacing the primary bust reference.
Explore this prototype in 3D

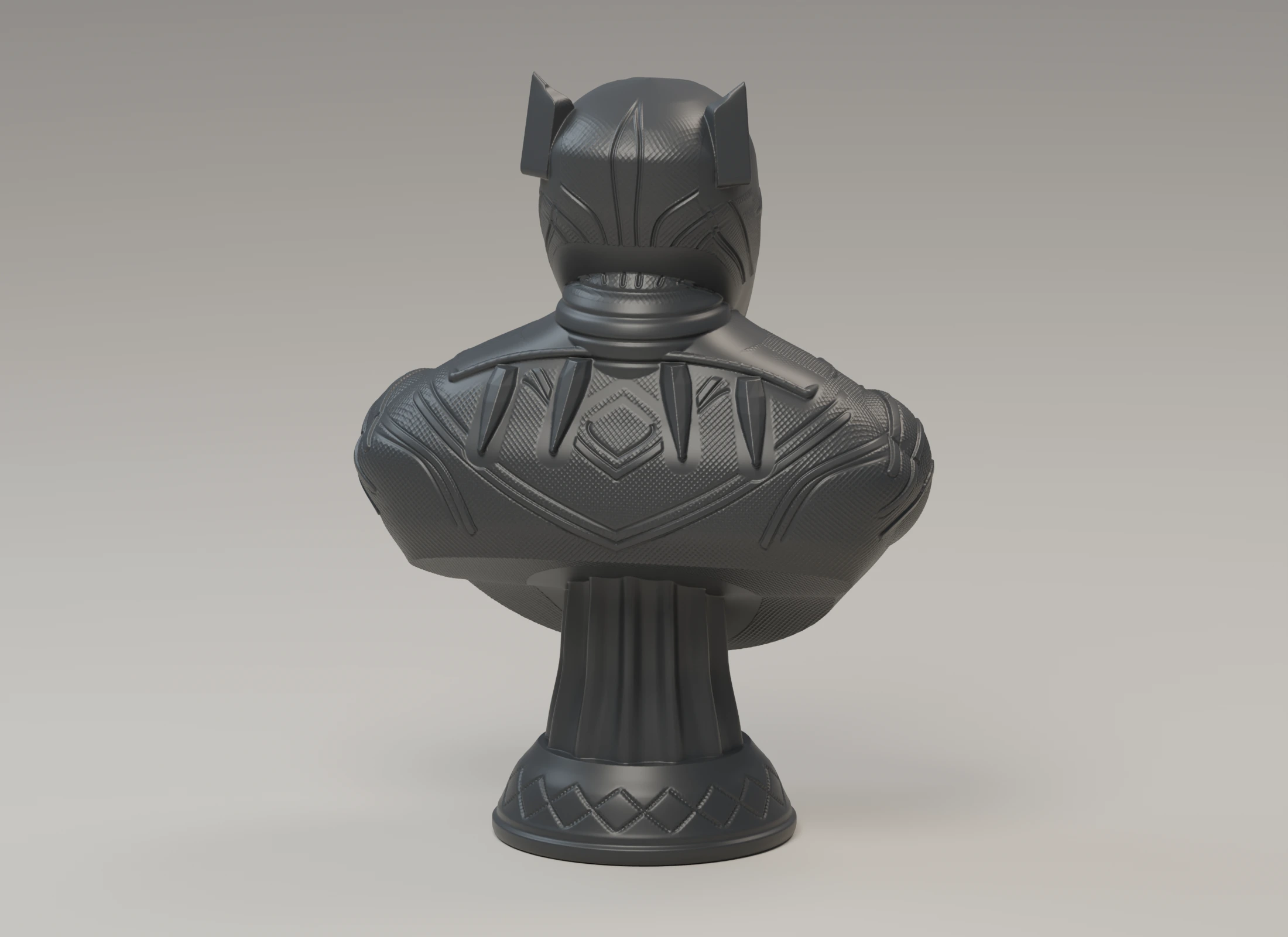

Rear view of the graphite bust showing helmet grooves, a banded neck, attached necklace, textured shoulders and the integral fluted stand. — The bust from behind
The rear photographs inform branching helmet channels, nape bands and angular back armor. The complete necklace circumference, twelve pedestal flutes and hidden crop geometry remain inferred. The circular foot is the supplied print orientation; shoulder undersides and the chin require support review.
Explore this prototype in 3D

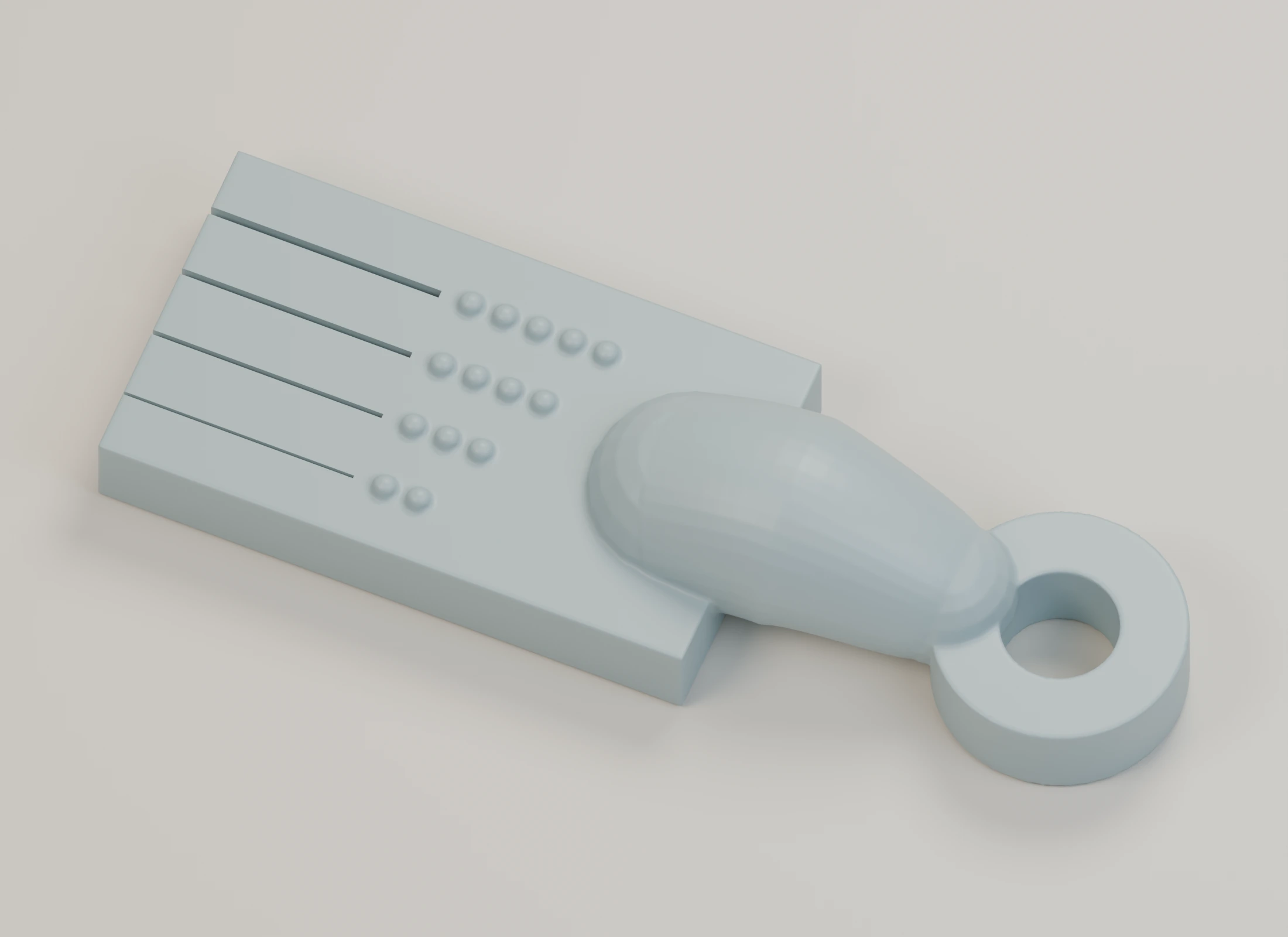

Single-material calibration coupon with four narrow labelled-by-dots slots and a reinforced circular eye. — Test the process first
The coupon combines a reinforced eye with 0.2, 0.3, 0.4 and 0.5 mm through-slots, identified by two through five raised dots. It helps reveal actual printed clearances and layer bonding before a full model is attempted.
Explore this prototype in 3D

Supplied STL inspectionsBack to sections

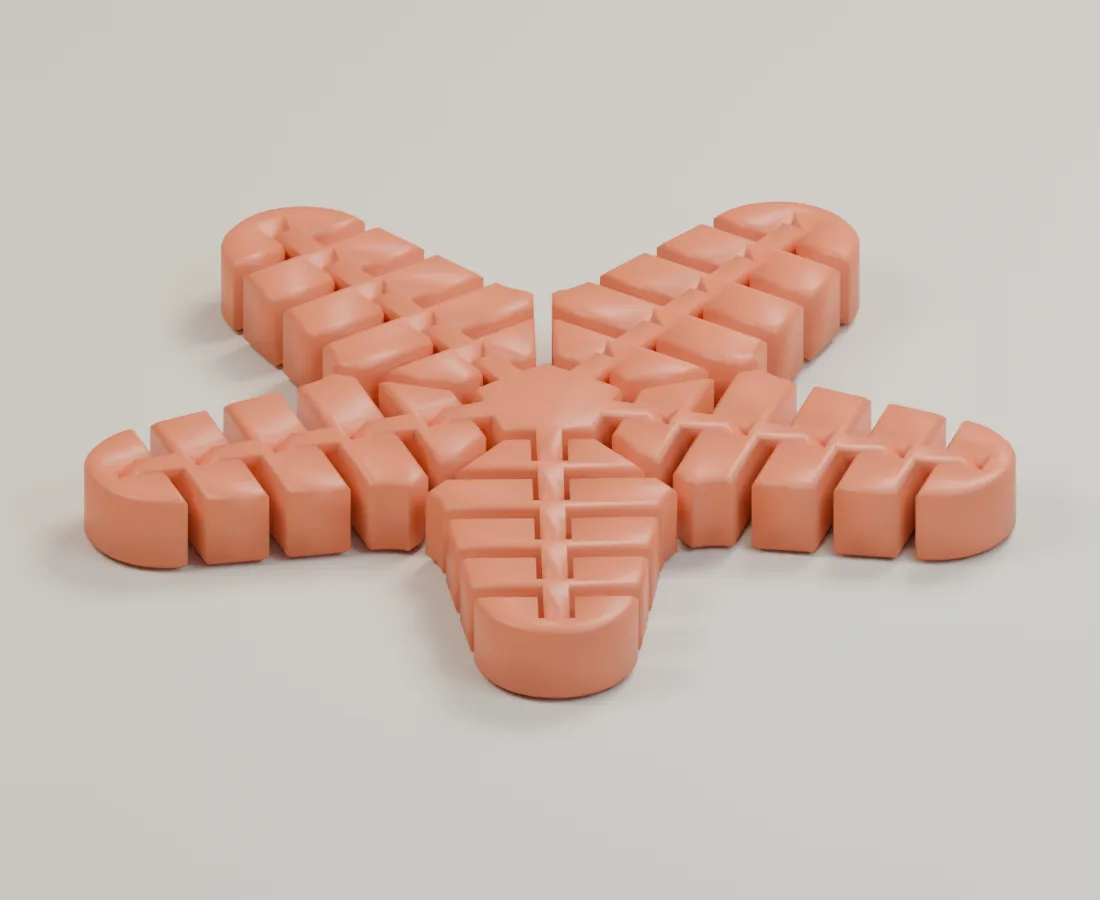

Inspection render of Stone Pestle's supplied articulated Flexi Starfish STL, not an AI-generated model. — Supplied STL - not AI-generated
Flexi Starfish - supplied STL
Geometry and single-colour slice checked
Supplied STL by Stone Pestle, not AI-generated or reconstructed here. Translation-only preparation preserves all 26 shells. Geometry and the X2D slice pass; movement and strength remain untested. CC BY-NC 4.0.
Source: Stone Pestle / CC BY-NC 4.0 Explore this prototype in 3D

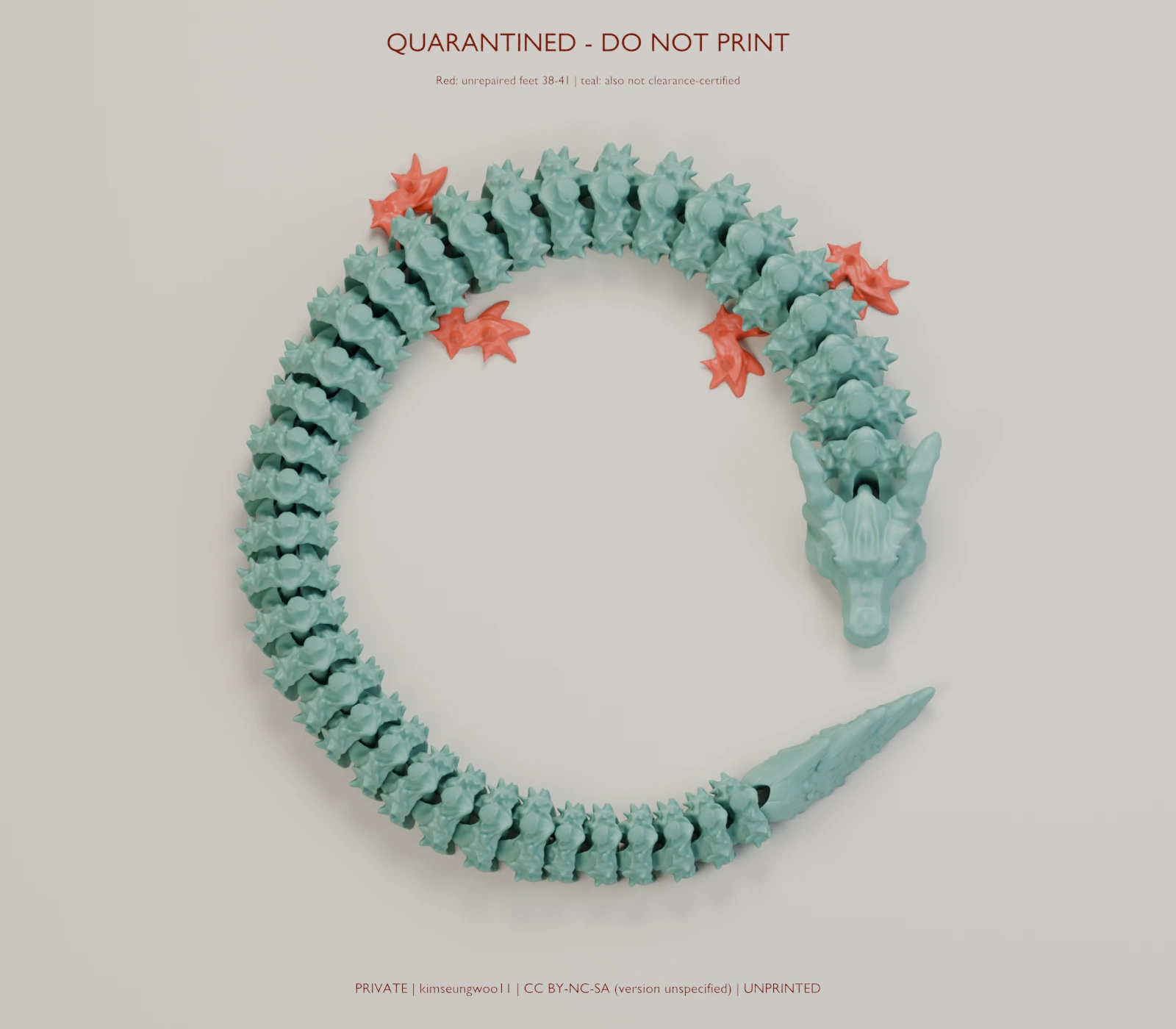

Labelled QUARANTINED, DO NOT PRINT diagnostic of kimseungwoo11's supplied articulated flame dragon STL. — Supplied STL - not AI-generated
Flame dragon - QUARANTINED supplied STL
QUARANTINED - DO NOT PRINT
Supplied STL by kimseungwoo11, not AI-generated here. QUARANTINED - DO NOT PRINT: four feet remain open and surfaces intersect. This labelled diagnostic is not a print-ready model. CC BY-NC-SA; the public listing specifies 4.0.
Source: kimseungwoo11 / CC BY-NC-SA 4.0 (public listing) Explore this prototype in 3D

A note on the work

An experiment,
not a specification.

These are unprinted fabrication prototypes, not structurally certified products or certified children's toys. Geometry checks and successful slicing do not establish strength, wear resistance or child safety.
The preserved fox-keyring is rigid and one piece, not articulated. Its reinforced attachment is behind the head rather than on the decorative tail. Tufts, wings, horns and jaws need support-removal inspection and physical testing even where their sections are thickened or rounded.
The fox-articulated measures 88.84 x 29.98 x 17.95 mm: approximately 89 mm by design, not a verified 75 mm reconstruction. Its head, two body lobes and tail form four captive moving sections, with three hinges and a tail-mounted eye. Native and actual STL each passed all 15 sampled configurations within +/-25 degrees, not an exhaustive swept-volume or physical-strength proof.
The corrected monochrome fox STL passed a 148-layer X2D baseline with no supports or warnings. H2D three-colour review remains pending; neither this X2D result nor the separate H2D coupon validates the full fox's colour routing.
Import the articulated fox's three aligned colour files as one parent with three child parts. Never split or arrange its four moving sections separately. Keep all four sections flat at Z=0, at 100% scale, and keep joints support-free.
The separate 27 x 8.6 x 8.5 mm captive-joint coupon has a 70-layer H2D review at 0.12 mm, without supports or a prime tower, but is unprinted. It does not approve the full fox. Print the coupon and a sacrificial full model, then inspect release and perform supervised pull, twist and repeated-motion/wear tests before use.
The X2D common dual-nozzle region is 235.5 x 256 x 256 mm and offset in X. Keep the supplied scale initially; resizing changes gaps, sections and bed fit as well as appearance.
Use compatible colours of the same polymer and the actual spool's process profile. STL is monochrome, and the recorded single-colour slices do not validate material routing or a three-colour purge-tower arrangement.
Rauisuchus was a crocodile-line archosaur, not a dinosaur. The pose, feet, skin and colours are artistic reconstructions, not an official franchise mesh or a certified scientific restoration.
The Black Panther-inspired model is a one-piece display bust, not a wearable mask or recovered original STL. Its approximately 180 mm nominal height, unseen geometry and fine weave are inferred from photographs without a ruler. Use one filament and tree supports; this unofficial study carries no claim of franchise licensing or redistribution rights.
The supplied Flexi Starfish is by Stone Pestle under CC BY-NC 4.0. Its 26 shells and 0.39557 mm static minimum gap are preserved; its successful 0.20 mm X2D slice does not establish printed joint movement, fatigue life or safe arbitrary resizing.
QUARANTINED - DO NOT PRINT the supplied articulated flame dragon by kimseungwoo11. Four feet remain open and surfaces intersect. Its inclusion is a diagnostic record, not print approval.
The dragon's supplied licence says Attribution-NonCommercial-ShareAlike without a version; its public listing specifies CC BY-NC-SA 4.0. Retain attribution, non-commercial restrictions and applicable ShareAlike terms for the supplied models and their inspection renders.
Supplied photographs, raw and derived meshes, native assets, scripts, toolpaths and reports are not website downloads. Only the prepared gallery images appear in the app; the modelling repository remains private and no model has been sent to a printer.

The five creature reconstructions, two process coupons and photo-informed bust use procedural geometry made with human direction and GPT-6 Astra assistance in September 2026. The compact articulated fox is a new original reference-informed prototype, not a replacement for the rigid fox or a supplied mesh. The bust is an unofficial character study, not photogrammetry or a recovered original sculpt. The fox's final native/STL, 15 sampled motion configurations and monochrome X2D slice are distinct from the H2D hinge-coupon review and full-model H2D colour validation. Stone Pestle and kimseungwoo11 retain credit for the two supplied STL designs, which are not AI-generated here.
